LED Driver

Overview

The main goal of this device was to control 2 RGB LED strips hanged under the ceiling. However, currently it supports temperature reading from Dallas 1-Wire DS18B20 sensor, provides a few inputs and outputs as well as buzzer notifications.

Features

  • 6 PWM outputs for 2 RGB LED strips
  • Buzzer notifications
  • 2 outputs
  • 4 debounced inputs
  • 1-Wire protocol implemented for Dallas DS18B20 temperature sensor

Specification

  • STM32F103C8T6 ARM-based microcontroller running at 48MHz
  • Input voltage: 12V (DC/DC converter used to provide stable 3.3V)
  • Programming by the RS232 interface (own USB bootloader in future)

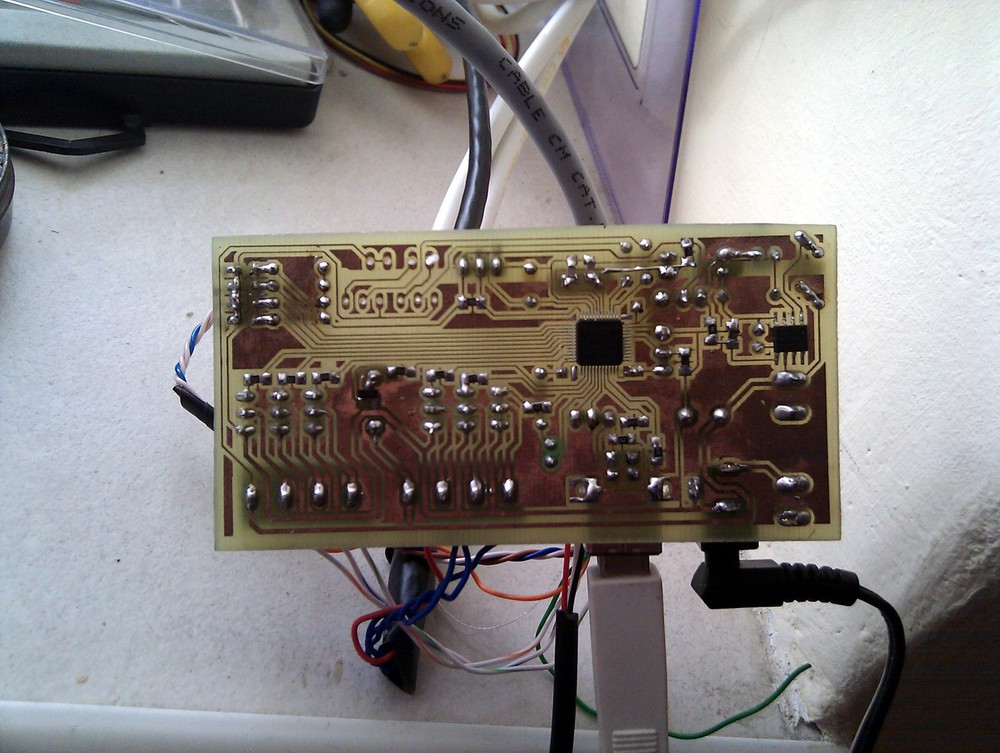

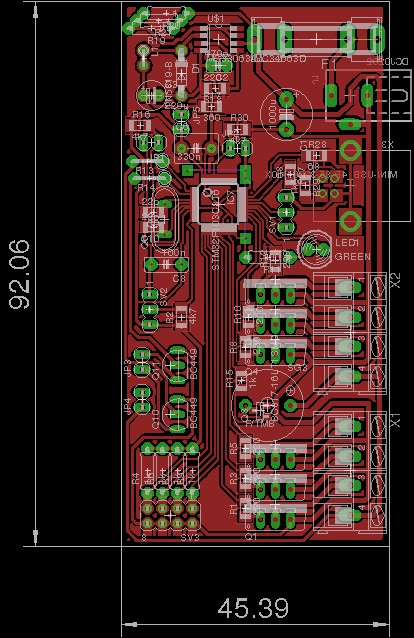

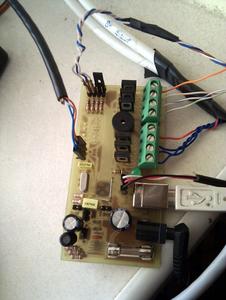

Schematic and board

Description

The device is controlled by the powerful ARM-based microcontroller - STM32F103 in LQFP package with 48 pinouts. Previously, ATtiny2313 was used but, because of the limitations in PWM outputs and lack of hardware USB controller it was impossible to implement so many features as with STM32.

Power supply

The device is powered by the DC/DC converter. It allows to power the device with wide range of input voltages (but restricted by the LED strips) without the need for heat sinks. The usage of the linear regulator is very inefficient here, because the logic circuit can consume up to 100mA and dropping from 12V to 3.3V at 100mA leads to wasting almost 1W as heat.

Communication

The internal USB hardware in combination with [url=https://github.com/KrystianD/stm32-public/tree/master/usb]my own simple USB high-layer framework[/url] for STM32 was used to provide communication with the KDHome application on the PC.

1-Wire

USART was used to implement 1-Wire protocol as described [link=http://www.maximintegrated.com/app-notes/index.mvp/id/214 title=here]. As a result, there is no limitations in using of the interrupts during the time-critical 1-Wire protocol management, because each bit of 1-Wire message is sent as 1 byte using the internal, independent from the main program flow, USART module. STM32 allows to configure USART to work in the half-duplex mode, so the only one pin of µC is used (TX).
